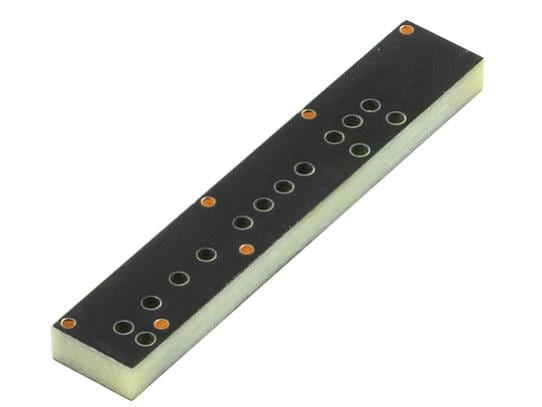

Passive Antenna Embedded, 698-960, 1695-2200, 2300-2700 , LTE (4G), PCB, -, -, SMD, 40 7 3) (Not recommended for new designs) Quectel YC0003AA
Hãng sản xuất: Quectel Model: YC0003AA - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Gain: 5.5 dBi
VSWR: 3
Style: Ceramic
Width: 7 mm
Height: 3 mm
Length: 40 mm
Impedance: 50 Ohms
Application: Cellular Radio, Wireless Applications
Polarization: Linear
Mounting Style: PCB Mount
Number of Bands: 3 Band
Center Frequency: 750 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2500 MHz
Mechanical Style: Chip
Maximum Frequency: 2.7 GHz
Minimum Frequency: 698 MHz
Termination Style: SMD/SMT
Protocol - Sub GHz: UHF
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
