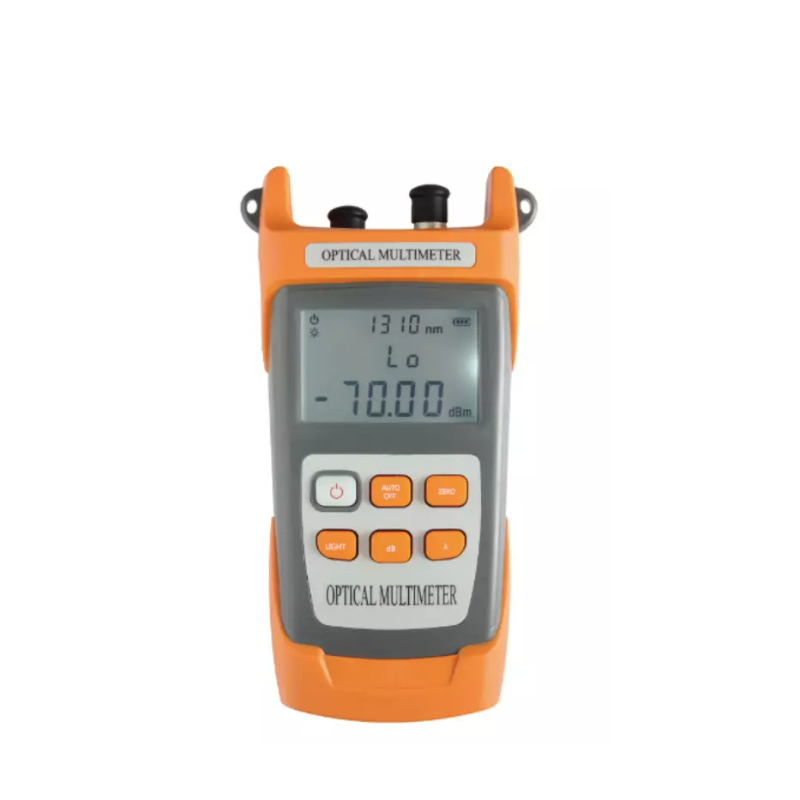

3S Telecom FOPM-7006A 光纤万用表 (800-1700nm, -70~+6dBm)

Wavelength: 800-1700nm

Fiber Connector: 2.5mm universal connector (suitable for FC SC ST)

Type of Detector: InGaAs

Measurement Range: -70~+6dBm

Uncertainty: ±5%

Calibration Wavelength: 850/980/1300/1310/1490/1550/1625/1650 nm

Display Resolution: Linear display: 0.1%, logarithmic display: 0.01 dBm

Visual Fault Locator (VFL)

Working Wavelength: 650±30nm

Output Power:  2 / 10 / 30mW

Mode: CW / 1Hz / 2Hz

Connector Port: 2.5mm universal connector (suitable for FC SC ST)

General Information

Power Supply: 3pcs AA Battery

Automatic Shutdown Time: 10 min

Operating Temperature: -10~+50°C

Storage Temperature: -40~+70°C

Relative Humidity: 0 ~ 95% No Condensing

Instrument size : 186 x 100 x 50mm

Weight: 140 / 150g
