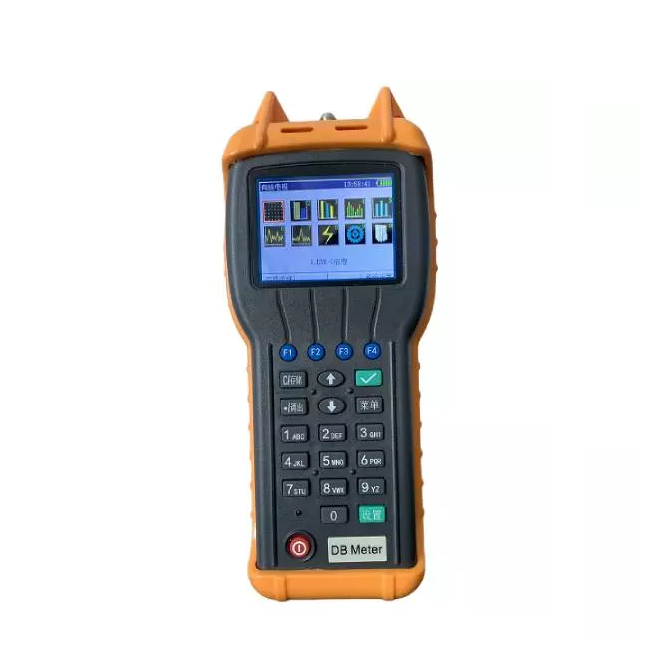

3S Telecom SLM-8000 手持式有线电视信号电平DB表 (5-870MHz)


Range: 5-870MHz

Modulation type: DVB-C/ITU-T J.83-Annex A

Support: 16/32/64/128/256 QAM

Power level: 30dBμV~110dBμV

Accuracy: ±2dB

L band width: Can be setted by users

Symbol rate: 1MS/S~8MS/S

MER: 18dB~39dB

MER Accuracy: ±2dB

BER: 1E-3 to 1E-9 Before/after error correction

Resolution: 10KHz ≤30ppm

Analog CATV

Power Level: 20dBμV~120dBμV

Accuracy: ±1.5dB


Power Supply: 7.2V 1600mAH rechargeable Li-ion  battery, AC 90~240V 50/60Hz

Charging Time: 3 ~ 4 hrs

Working Time: > 6 hrs

Dimension: 225 x 100 x 40 (mm) x100x40(mm)

Weight: 1.2kgs (battery included)
