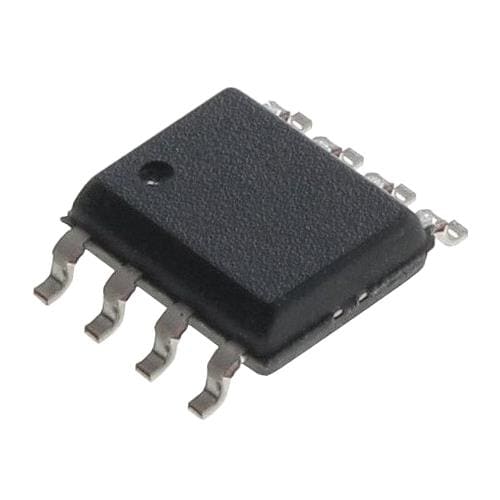

Cirrus Logic CS5513-BSZR ADCs - Analog to Digital Converters IC 20-Bit 8-Pin Delta Sigma ADC

Width: 4 mm

Height: 1.5 mm

Length: 5 mm

Input Type: Differential

Resolution: 20 bit

Unit Weight: 540 mg

Architecture: Sigma-Delta

Sampling Rate: 326 S/s

Interface Type: Serial

Mounting Style: SMD/SMT

Reference Type: External

Reference Voltage: 4.75 V

Number of Channels: 1 Channel

Number of Converters: 1 Converter

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 4.75 V

Pd - Power Dissipation: 400 mW

Operating Supply Voltage: 4.75 V to 5.25 V

INL - Integral Nonlinearity: +/- 0.0015 % FSR

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
