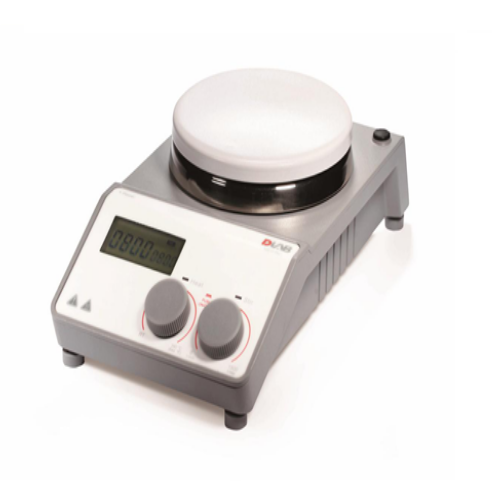

DLAB MS-H-Pro+ aluminum package 1 LCD数显磁力加热搅拌器 (~340°C; aluminum hotplate; with PT1000A)

Work plate dimension (WxD): φ135mm (5 inch)

Work plate material: aluminum

Motor type: Brushless DC motor

Stirring positions: 1

Max. stirring quantity (H2O): 20L

Max. magnetic bar (length): 80mm

Speed range: 100~1500rpm

Resolution: ±1rpm

Speed display: LCD

Temperature display: LCD

Heating temperature range: Room Temp.~340°C, increment: 1°C

Temperature control accuracy: ±1°C (<100°C); ±1% (>100°C)

Overheating protection: 420°C

Temperature display accuracy: ±0.1°C

External temperature sensor: PT1000 (accuracy: ±0.2)

"Hot" warning: 50°C

Data connector: RS232

Protection class: IP42

Motor rating input: 18W

Motor rating output: 10W

Power: 550W

Heating output: 500W

Voltage: 100~120/200~240V; 50/60Hz

Dimension (WxDxH): 160×280×85mm

Weight: 2.8kg

Permissible ambient temperature and humidity: 5~40°C, 80%RH

Please choose the EURO plug when ordering:

+ Euro plug, 200V~240V/50Hz/60Hz

Included accessories: PT1000A (18900016)

Optional accessories (refer to datasheet page 72-73)
