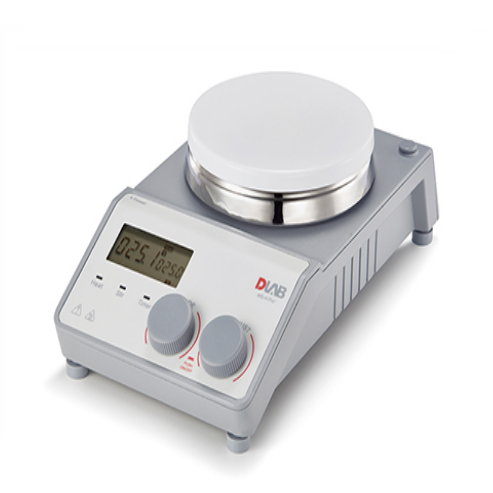

DLAB MS-H-PROT LCD 数字磁力加热搅拌器,具有定时器 (~340°C; 100~1500rpm)

  • 制造商:DLAB
    Model: MS-H-PROT
    P/N: 8030201110
    保障: 12 Month
    • 报价要求 Request a Quotation
  • 联系
    • 加入购物车
    • 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Work plate dimension (WxD): φ135mm (5 inch)

Work plate material: stainless steel cover with ceramic

Motor type: Brushless DC motor

Stirring positions: 1

Max. stirring quantity (H2O): 20L

Max. magnetic bar (length): 80mm

Speed range: 100~1500rpm, resolution: ±1rpm

Speed display: LCD

Temperature display: LCD

Heating temperature range: Room temp.~340°C, increment: 1°C

Temperature control accuracy: ±1°C (<100°C); ±1% (>100°C)

Overheating protection: 420°C

Temperature display accuracy: ±0.1°C

External temperature sensor: PT1000 (accuracy: ±0.2)

"Hot" warning: 50°C

Timer function: 1min~99h 59min

Data connector: RS232

Protection class: IP42

Motor rating input: 18W

Motor rating output: 10W

Power: 550W

Heating output: 500W

Voltage: 100~120/200~240V; 50/60Hz

Dimension (WxDxH): 160×280×85mm

Weight: 2.8kg

Permissible ambient temperature and humidity: 5~40°C, 80%RH

Please choose the EURO plug when ordering:

+ Euro plug, 200V~240V/50Hz/60Hz

Optional accessories (refer to datasheet page 72-73)

Details

Datasheet
