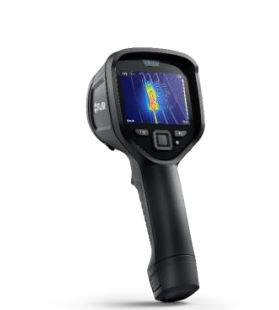

FLIR E5 Pro 带点火云的红外相机 (-20°C~400°C, 160 × 120 pixels, 5.2 mrad, FLIR Ignite™)

  • 制造商:FLIR
    Model: E5 Pro
    P/N: 13301-0101
    • 报价要求 Request a Quotation
  • Price (exclude VAT)40,998,390 VND
    Price (include VAT)45,098,229 VND
    • 加入购物车
    • 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267


Image and optical data

IR resolution: 160 × 120 (19,200 pixels)

Thermal sensitivity/NETD: <0.10°C (0.27°F) / <100 mK

Spatial resolution (IFOV): 5.2 mrad

Field of view (FOV): 33°

F-number: 1.5

Image frequency: 9 Hz

Focus: Focus-free

Detector data

Detector type: Focal Plane Array (FPA), uncooled microbolometer

Spectral range: 7.5–13 µm

Image presentation and modes

Display: 3.5” 640x480 color LCD

Image adjustment: Automatic adjust/lock image

Image modes: Thermal MSX, thermal, picture-in-picture, thermal blending, digital camera

Color palettes: Iron, Rainbow, Black & White

Measurement and analysis

Object temperature range: -20°C to 400°C (-4°F to 752°F) in two ranges

Accuracy: ±2°C (±3.6°F) or ±2% of reading for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)

Spotmeter: Center spot

Area: Box with max/min

Isotherm: Above alarm, below alarm

Data communication and interfaces

Interfaces: USB Micro: data transfer to and from PC and Mac device

Wi-Fi: Peer-to-peer or infrastructure

File format: Standard JPEG, 14-bit measurement data included

Touchscreen: yes

Visual resolution: 5 MP

NETD Improvement: yes

FLIR Ignite™ Connectivity: yes

LED Light: yes

Text Annotation: yes

∆T (NFPA70B): yes

Over The Air Updates: yes

1-Touch Level/Span: yes

Radiometric USB streaming: yes

MSX: yes


Operating temperature range: -15°C to 50°C (5°F to 122°F)

Battery Rechargeable: 3.6 V Li ion battery

Battery operating time: Approx. 4 hours at 25°C (77°F) ambient temperature and typical use

Battery charging time: 2.5 hours to 90% capacity in camera. 2 hours in charger

Drop: 2 m (6.6 ft.)

Camera weight, incl. battery: 0.575 kg (1.27 lb.)

Camera size (L × W × H): 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)

Box contents: Infrared camera, hard transport case, battery, USB cable, power supply/charger with EU, UK, US and Australian plugs, printed documentation


Ex-Pro Series Datasheet
