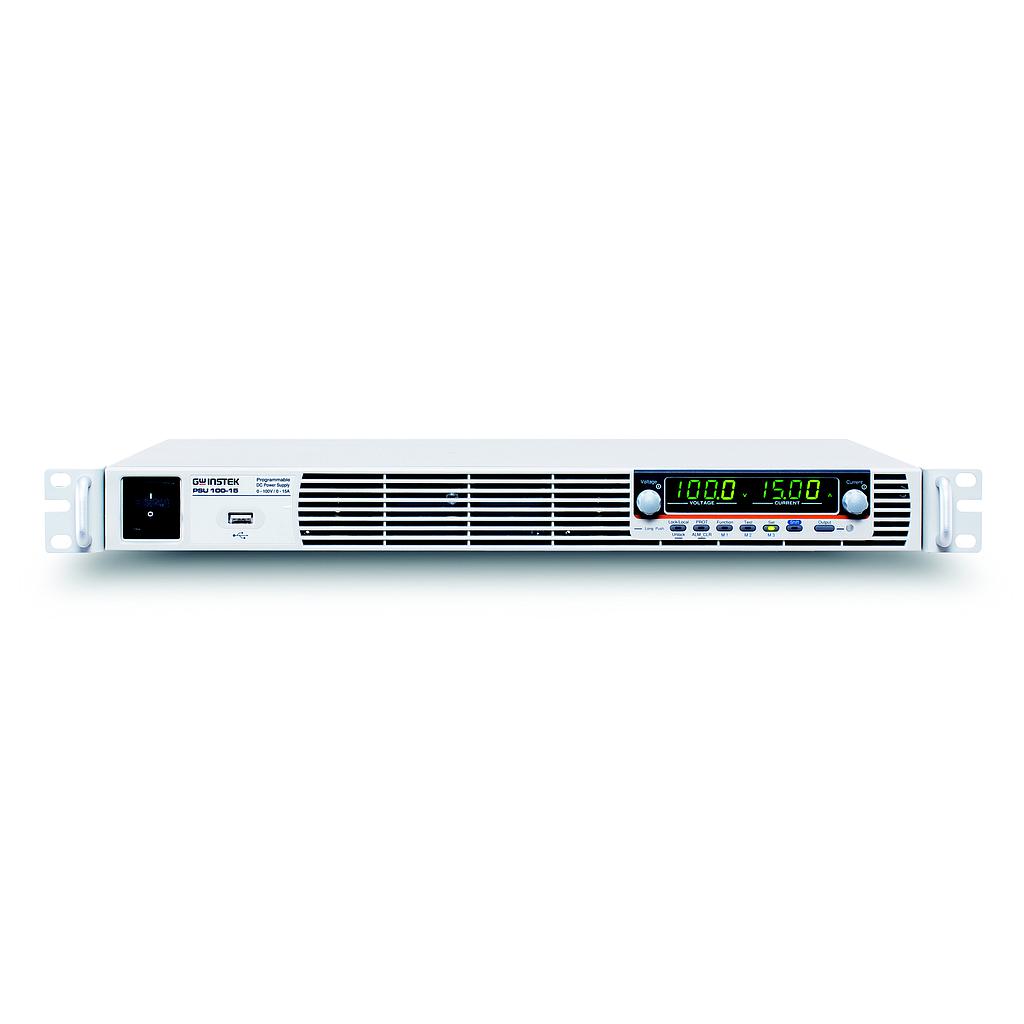

GW INSTEK PSU 400-3.8 GPIB 可编程开关直流电源 (0~400V; 0~3.8A; 1520W; GPIB)

  • 制造商:GW INSTEK
    Model: PSU 400-3.8 GPIB
    来源: Taiwan
    保障: 12 Month
    • 报价要求 Request a Quotation
  • 联系
    • 加入购物车
    • 立即购买
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267


Voltage output range: 0~400V

Current output range: 0~3.8A

Power output: 1520W

CV priority mode:

Line regulation: 42mV

Load regulation: 42mV

Ripple and noise: 200mV

Rise time: 200ms

CC priority mode:

Line regulation: 2.38mA

Load regulation: 5.76mA

Ripple and noise: 17mA

Protection function: over voltage protection, over current protection

Mode: Analoge Programming and monitoring

Trigger mode

Interface: (RS-232/485, USB, LAN, GPIB)

Power supply: 100Vac to 240Vac, 50Hz to 60Hz, single phase

Weight: 8.7Kg

Dimensions: 423×43.6×447.2mm

Included accessories:

- CD-ROM x 1(User Manual, Programming Manual)

- Output terminal cover x 1

- Analog connector plug kit x 1

- Input terminal cover x 1, 1U Handle(RoHS)

- 1U Bracket(LEFT, RoHS)

- 1U Bracket(RIGHT, RoHS)

- Power Cord(10A) x 1
