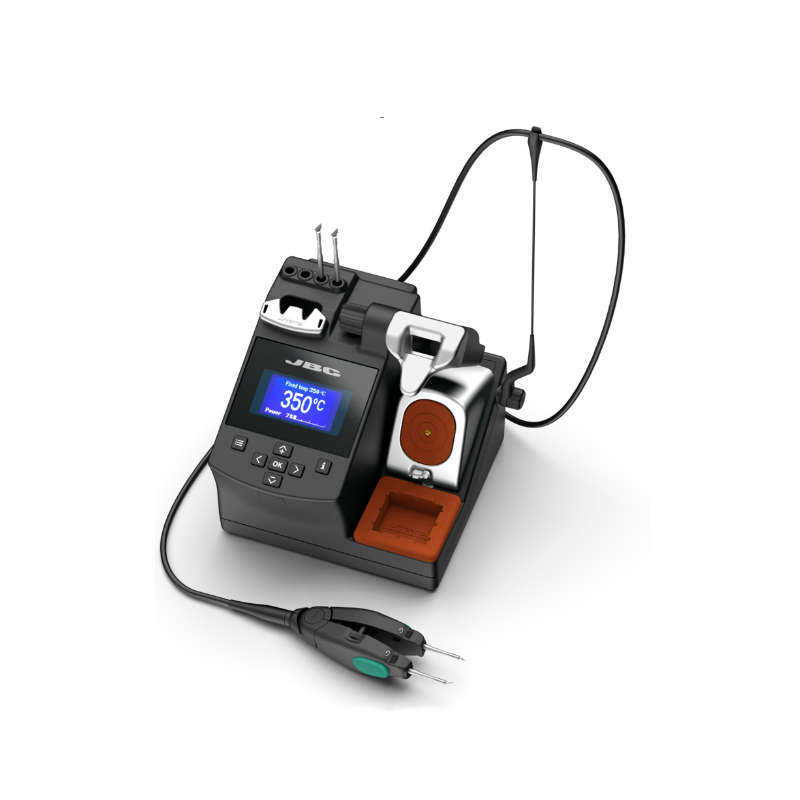

JBC CP-2QF 精密返工台 (90 ~ 450ºC, 90W)

Nominal Power: 90W

Peak power (Tool): 80W

Selectable temperature: 90 to 450 ºC / 190 to 840 ºF

Idle temp. stability (still air): ±1.5 ºC / ±3 ºF (Meets and exceeds IPC J-STD-001)

Temperature accuracy: ±3 % (Using reference cartridge)

Temp. adjustment: ±50 ºC / ±90 ºF (Through station menu setting)

Tip-to-ground resistance: <2 ohms

Tip-to-ground voltage: <2 mV RMS

USB-B: PC communications

FAE / Robot connector: Remote control or FAE Fume Extractor connection

Earthing fuse: F 1.25A

ESD safe: Meet ANSI/ESD S20.20-2021

WEIGHT AND DIMENSIONS

Control Unit: 170 x 176 x 145 mm / 2.70 kg./ 6.69 x 6.93 x 5.71 in / 5.96 lb.

Package: 234 x 234 x 258 mm / 3.14 kg./ 9.21 x 9.21 x 10.16 in / 6.92 lb.
