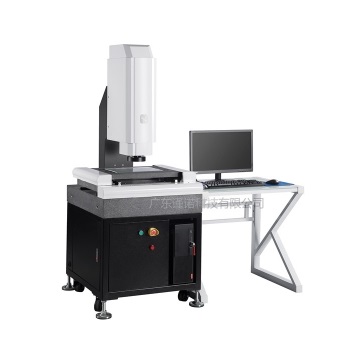

Jinuosh G400 自动图像测量仪 (400*300*200mm)

External size: 600*750*1100mm

Weight (kg): 260kg

Load-bearing glass: 20kg

Power equipment: 220V(AC) 50HZ


     Marble size: 450*350mm

     Glass size: 330*230mm

     Campaign Range: X: 400 mm Y: 300mm

     Focusing Range (Z axis): 200mm

Optical system:

     V-TECH high-resolution color CCD1/3_inch 650TVL

     Automatic zoom Coaxial navigation Lens magnification: 0.7-4.5X;

distance: 90mm

     Video magnification: 25-230x (19 inch widescreen display); Display resolution:0.0001mm

     3D images accurate auto measured software

Linear accuracy:

     X,Y Linear Accuracy: 2.5+L/250, X-Y vector Accuracy: 2.5+L/200; Z≤5um (standard checking) (L means measured length, unit:mm)

Lighting system: Controllable: LED six circles eight octants (thirty-two phase) ring surface light + coaxial epi-illumination + parallel back light in the bottom
