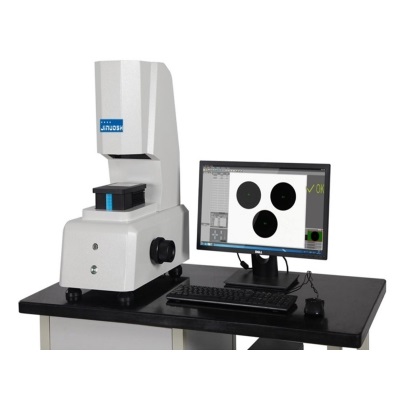

Jinuosh ST 100A 尺寸测试设备 (台式) (107×271mm)

Field of vision: 107×271mm

Measurement accuracy: ±5µm

Repeatability: ±2µm

Instrument dimensions: 650×430×950mm

Instrument weight: 58KG

Platform load bearing: 10KG

Image Sensor: 20 million pixel CCD

Lens: one-sided telecentric lens

Maximum workpiece height: 50mm

Lens working distance: 160mm

Lens depth of field: 10mm

Light source system: Parallel backlight

Software: JN-AOS. 2. 0

Computer setup: CPU 13 processor 4G memory

Monitor: 21.5-inch LCD monitor

Signal output: Judging the output PASS FAIL NULL

Working environment: 25°C±2℃ 20% to 80%RH

Measuring speed: ≤5 seconds (within 100 dimensions)

Voltage: AC100-240V 50/60Hz

Power: 80W
