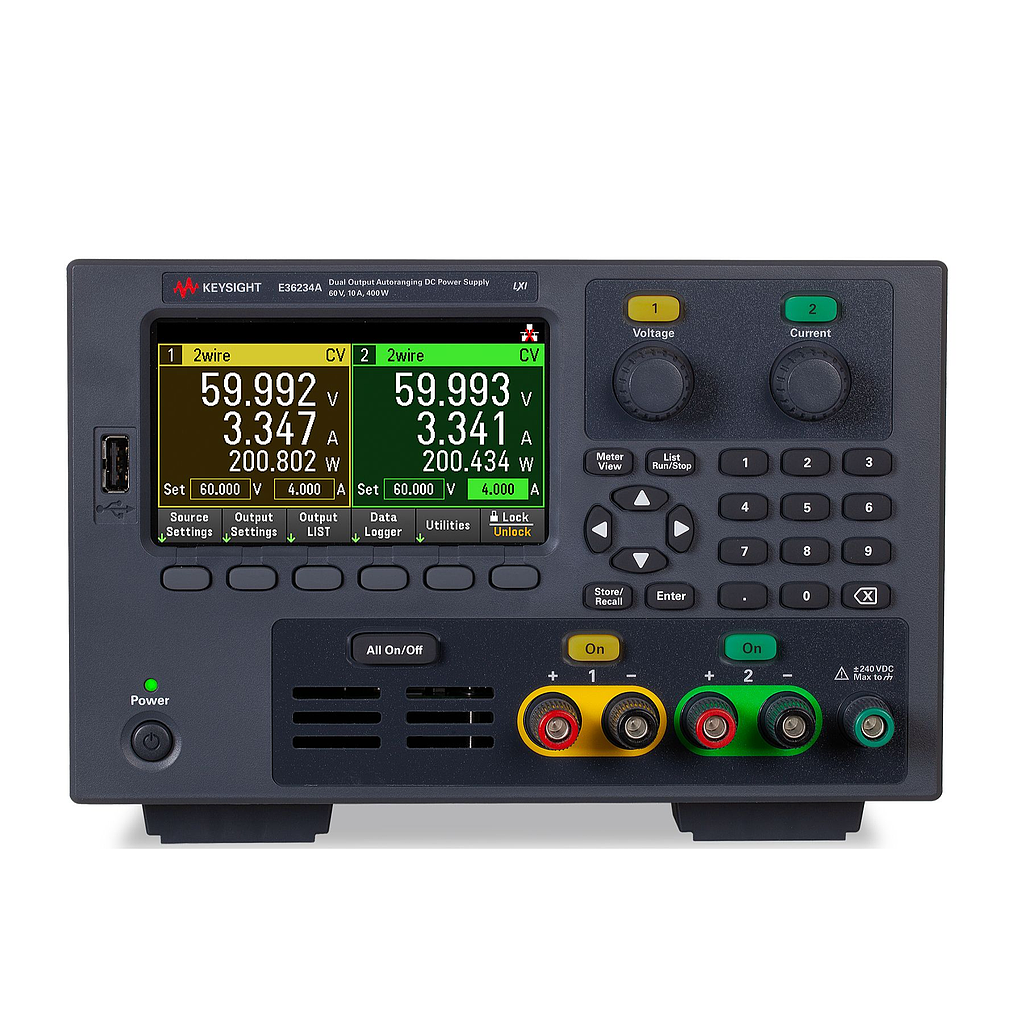

KEYSIGHT E36234A 自动测距工作台电源 (with GPIB E363GPBU)

• Power output: 400 W

• Output Rating:

Output 1: 0 to 60 V, 0 to 10 A

Output 2: 0 to 60 V, 0 to 10 A

• Ripple & Noise (20 Hz to 20 MHz)

Normal Mode Voltage: <3.5 mVpp

Normal mode current: < 1 mArms

• Overvoltage protection (OVP): 0.2% +0.4V

• Command processing time: < 10 ms

• Accuracy 12 months (23 ºC ± 5 ºC)

Current 0.1% + 3 mA

Voltage 0.03% +8 mV

• AC input: ~100 VAC – 240VAC (± 10%), 50/60Hz, 800VA

• Icludes over voltage, over current, and over temperature protection

• Display: 4.3-inch LCD color

• Overall dimension, mm (H x W x D) 144.8 x 215.9 x 389.2

• Weight: 6.9 kg
