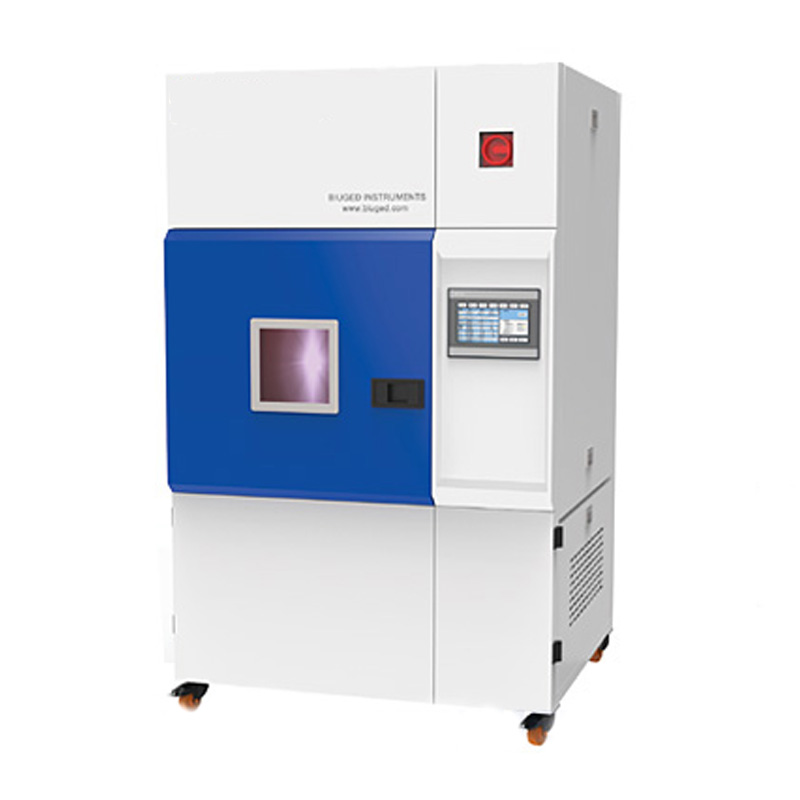

Lonroy BGD 862 Big Xenon Climate Testing Chamber (RT~70℃)

Xenon Lamp: 6.5 KW water cooling long arc xenon lamp

Light Filter: Import originally from ATLAS,  can simulate indoor or outdoor sunshine spectrum

Exposure Area: 6, 500 cm (63-65 pcs standard samples of 15cm×7cm size)

Monitoring Method to Irradiance:

Four types: 340nm, 420nm, 300nm～400nm, 300nm～800nm Showing at the same time

Adjustable Range of BPT: RT~110℃

Adjustable Range of BST: RT~120℃

Adjustable Range of Working: room RT~70℃(Dark)

Temperature Stability: ±1℃

Temperature Uniformity: ≤2℃

Temperature Deviation: ≤ 1℃

Adjustable Humidity: Light: 10%-75% Dark: 10%-95%

Rotate speed of sample :1 r/min(circle as lamp centre)

Spray Function: Can set spray continuous time and spray period

Water Demands: High purity deionized water(Conductivity<2us/cm)

Compressed Air: Clean, oilless compressed air with 0.5MPa pressure, Max. air supply is near 60L/min. Average air consumption is 10L/min ～30L/min(Depends on testing standard)

Flow of Deionized Water: 0.2L/min(Add humidity or spray)

Power Supply :AC380V±10%, Three-phase four-wire 50Hz; Max. Current: 50A, Max. Power 9.5KW

Overall Size :1,220mm×1,200mm×2,050mm(L×W×H)

Net Weight: 500 KG
