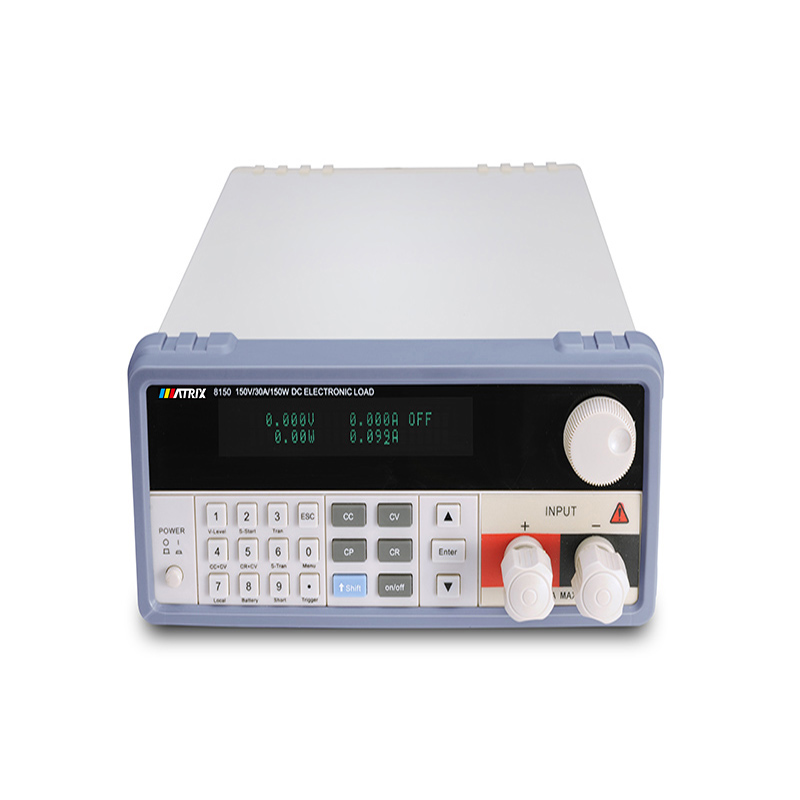

MATRIX PEL-8150 电子负载 (150W, 0~30A, 150V)
制造商: MATRIX Model: PEL-8150 - 联系
Rated input:
Power: 150W
Electric current: 0 ~ 30A
Voltage: 150V
Constant current mode
Range: 0 ~ 3A / 0 ~ 30A
Resolution: 0.1mA / 1mA
Accuracy: 0.03% + 0.05%
Constant voltage mode
Range: 0.1 ~ 19.999V 0.1 ~ 150V
Resolution: 1mV / 10mV
Accuracy: 0.03% + 0.05% FS
Constant resistance mode (when input voltage and current value ≥ 10% of full scale)
Range: 0.03Ω ~ 10k / 0.03Ω ~ 5k
Resolution: 16bits
Accuracy: 0.2% + 0.2% FS
Constant power mode (when input voltage and current value ≥ 10% of full scale)
Range: 0 ~ 150W
Resolution: 1mV / 10mV
Accuracy: 0.2% + 0.2% FS
Voltage measurement:
Voltage: 0~19.999V / 0~150V
Resolution: 1mV / 10mV
Accuracy: 0.015% + 0.05% FS / 0.015% + 0.05% FS
Curent measurement:
Electric current: 0 ~ 3A / 0 ~ 30A
Resolution: 0.1mA / 1mA
Accuracy: 0.05% + 0.1% FS / 0.05% + 0.1% FS
Power measurement value (when input voltage and current value ≥ 10% of full scale)
Power: 100W / 150W
Resolution: 1mW / 10mW
Accuracy: 0.2% + 0.2% FS
Battery measurement: battery input: 0.5 ~ 150V
Maximum measurement: capacity = 999 / H; resolution = 0.1mA; actual = range = 1S ~ 16HS
Dynamic test function: 0 ~ 5kHz; T1 & T2: 60Us ~ 999S; Accuracy: ± 15% offset + 10% FS
Current soft start time: 1mS; 2mS; 5mS; 10mS; 20mS; 50mS; 100mS; 200mS; 500mS; 1000mS; 2000mS; Accuracy: ± 15% offset + 10% FS
Short circuit function
Current (CC): 3A / 30A
Voltage (CV): 0V
Resistance (CR): 55mΩ
Temperature
Operating temperature: 0 ~ 40 ° C / 80RH
Storage temperature: -10 ° C ~ 70 ° C / 80RH
Bare metal size (W * H * D): 215 * 100 * 355mm
Packing size (W * H * D): 310 * 200 * 480mm
Net weight (kg): 4.1
Gross weight (kg): 5
