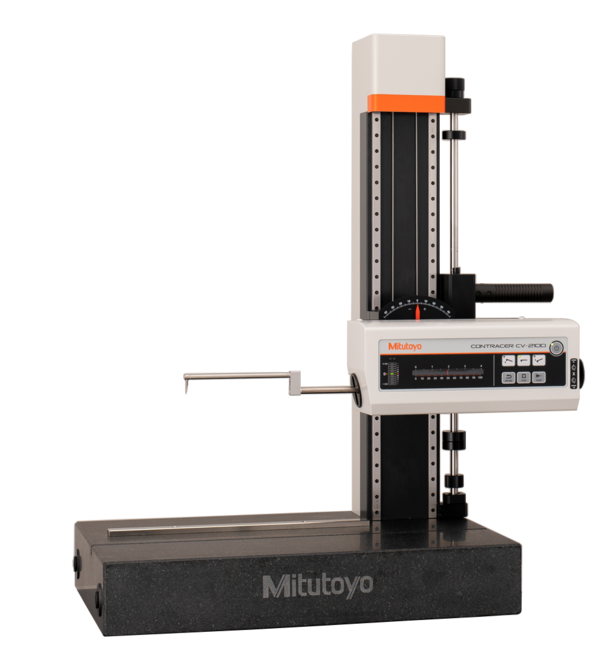

MITUTOYO CV-2100M4 轮廓测量仪 (X=100mm; Z2=350mm)

Unit: Inch/mm

Measuring range: Z1 = 50 mm; X = 100 mm

Measuring speed: 0.02 - 5 mm/s

Drive speed: X = 0 - 20 mm/s

Accuracy:

X = (2,5 + 0,02L) µm

[L: drive length (mm)]

Z1 = (2,5 + I0,1HI) µm

[H: Measurement height from the horizontal position (mm)]

Z2-axis range [mm]: 350

Z1-axis range [mm]: 50

Z2-axis column type: Manual: Quick up and down motion, fine feed

X1-axis range [mm]: 100

Traverse straightness: 2.5 µm / 100 mm

Column type: M4: 350 mm

Details

Datasheet
