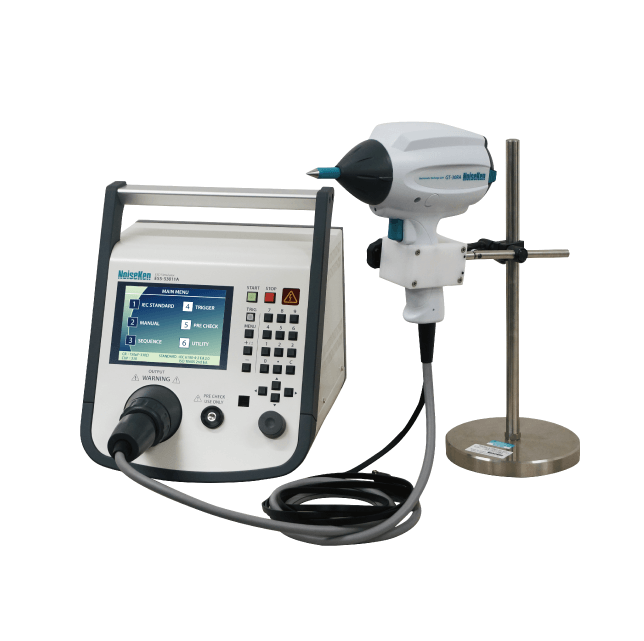

NOISEKEN ESS-S3011A & GT-30RA 静电放电模拟器

Polarity : Positive / Negative

Output voltage : 0.20 kV ～ 30.0 kV ± 5% (30.5 kV max) *0.20kV〜1.99kV ±10%　2.00kV〜30.0kV ±5%

                          ～ 10.0 kV : 0.01 kV step ～ 30.0 kV : 0.1 kV step

Repetition cycle : 0.05s ～ 600s ±10% / Manual

                            Set step : 0.01s (0.05 ～ 9.99s), 0.10s (10.0 ～ 600.0s)

Discharge number of times : 1 ～ 60,000 times, Preset 1 time step or continuous preset

Discharge mode : Contact discharge / Air discharge

Radiation level mode : NORMAL mode / EXTRA mode

Trigger mode : Gun trigger / Main trigger / External trigger

Operation panel : Color LCD / Push-buttons (Partially lighting)

Gun holder : Standard attached (to hold the discharge gun Model GT-30RA)

Radiation mode select switch : Extra / Normal switching function built-in

Discharge detection : Discharge detection function in air-discharge equipped

Pre-checking function : Following 3 steps function equipped (by user operation. Not the calibration but just checking)

                        STEP1 : High voltage output checking

                        STEP2 : Withstanding voltage checking

                        STEP3 : Discharge relay operation checking

CR & Gun head checking :CR constant and gun head recognizable

                        (indication to prevent a wrong combination)

"IEC STANDARD" test mode : Contact discharge mode : 2.0 kV, 4.0 kV, 6.0 kV and 8.0 kV steps

                                                Air discharge mode : 2.0 kV, 4.0 kV, 8.0 kV and 15.0 kV steps

"MANUAL" test   mode : Contact / Air discharge mode, Arbitrary setting 0.2 kV ～ 30.0 kV

                                        Sweeping function built-in, Recordable up to 99 units

"SEQUENCE" test mode : Enables to operate units set in MANUAL mode continuously.

                                                Max. 22 steps / 1 program and the programs recordable up to 20.

Warning lamp : Lighting at voltage output from the generator.

                         Blinking at electro-static discharging

Charge capacitor / resistor : 150 pF±10%, 330Ω±10% (Built-in CR unit for discharge gun GT-30RA)

Charge resistor in generator : 10 MΩ (Totally 53Ω in combination with 43 MΩ in discharge gun)*

AUX connector : D-SUB 15 pins female connector

                           (for connecting to patolight, automated ESD eliminator,

                          external interlock input, external trigger input terminal)

Optical communication : Optical connector (serial interface) for connecting to PC connector

Power supply / consumption : AC100 V ～ AC240 V 50 Hz / 60 Hz ±10% 75VA

Dimensions : Generator : (W)392 mm x (H)312 mm x (D)295.3 mm (gun holder included)

                      Discharge gun : (W)83.3 mm x (H)217.2 mm x (D)229.3 mm

Weight : Generator : approx. 7.5 kg (with Gun Holder)

              Discharge gun : approx. 800 g (cable and connector excluded)

Details of GT-30RA discharge gun: Discharge gun (with discharge cup 330 Ω test), CR unit 06-00073B (150 pF – 330 Ω), discharge tips ( conical / round)
