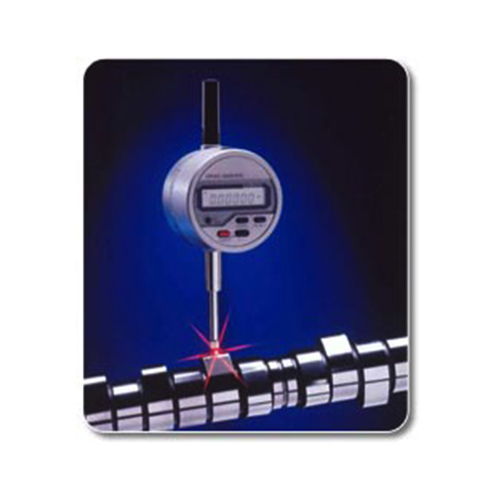

Onosokki EG-225 带凸耳背的数字式线性仪表 (1.0" / 25.4 mm)

Range: 1.0" / 25.4 mm

Resolution: 0.00005" / 0.001 mm

Response Speed: 20 in / s

Measuring Force: 150 gf / 5.3 ozf (adjustable force, min. 25g)

Output: Serial BCD, Optional RS-232C, USB, MTI and Analog outputs

Stem Diameter: 3/8" (.375")

Contact Point Thread Size: AGD 4 / 48

Operating temperature: 41° to 104° F / 5° to 40° C

Power Supply: AC Adapter (120V) Built-in 8-hour rechargeable battery

Dimension: L-4.4" W-2.0" TH-1.5"

Weight: 6.3 oz / 180 g

Standard accessories: Finger lifter, AC adapter, lug back and contact point. Optional Outputs: RS-232C, USB (plug & play) MTI, Analog, Upper & Lower relays. Now Available: Wireless Data transfer interface, please ask for quote.     note:   EG-225 is not compliant with RoHS10 and non CE compliance

(Only 120V AC Adapter available),   Prices are subject to change at any time.
