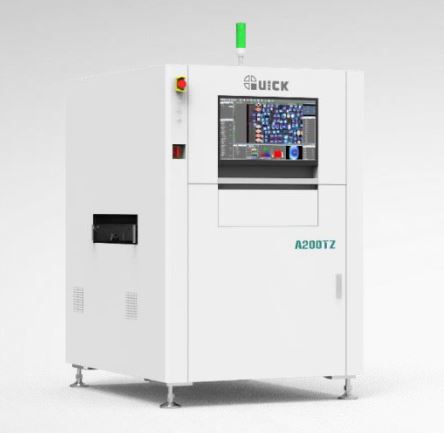

QUICK EPOCH A203TZ SMT和焊节AOI (320mm/S- 570mm/S)

Optical imaging system:

Camera : 5 MP high-speed camera

Light source : Multi-angle high white light

Optical resolution : 10μm  15μm  20μm

Inspection speed : Scan speed 320mm/S  Scan speed 430mm/S  Scan speed 570mm/S

Programming mode : Manual programming, CAD data import, AI programming

Defect inspection:

Component defect : Deviation, missing parts, skew, tombstoning, inverted, overturned, wrong parts, damage, polarity

Soldering joint defect : Icicle, hole, solder bead, solder pad with less/more solder, bridging, warping, gold finger pollution/scratches

Mini Led defect : multiple die、 missing die、 upside down、 reversed、 shift、 billboard、 die lifting、 rotation、 dead led、 foreign matter、internal shorting、 solder shorting、 cold soldering

X-Y-Z axis control system : High-precision ball screw drive, Z axis range 50mm

X-Y-Z axis control accuracy : 10 μm

PCB carrier size : 50×50mm(Min)~ 470×510mm(Max)

PCB curvature : < 5mm or 2% of PCB diagonal length

PCB measurable thickness : 0.6-5 mm

PCB conveyor height : 880-920 mm

PCB flow direction : Left in and right out, right in and left out (factory setting)

Conveyor loading weight : 5 kg

Conveyor width adjustment/conveying : Automatic width adjustment, belt conveying

Height limit of passable component:

Top : 78 mm

Bottom : 40 mm

Side : 3 mm

Weight : About 750 kg

Machine sizes : 1000*1350*1650mm

Power requirements : 200-240 V, single phase, 50/60 Hz, 3 kVA

Air source : 5-6 bar

Machine safety : Meet CE standards

Software: Offline programming software, maintenance station & SPC management system (optional), deep learning system (optional), barcode system (optional), 3D line scan camera (optional)
