Transpak TP-601BP Tauris Transit 捆扎机 (Belt-driven, compression press, 8-12mm, 7-70kg)

Strap Width: 8 mm, 9 mm or 12 mm

Tension Range: 7 - 70 kg (requires safety devices to meet CE regulations)

Capacity: Up to 18 packages/minute (60Hz) (Cycle speed up to 29 cycles/minute)

Table Height : 825 mm

Weight: 347 kg

Pneumatic Source: 6 bar

Air Consumption: 10 liter/cycle

Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH


Siemens PLC

Variable conveyor speed: from 18 meters/minute to 42 meters/minute

Safety guards

Foot pedal switch



Watch as reference: Transpak TP-601B Tauris Transit

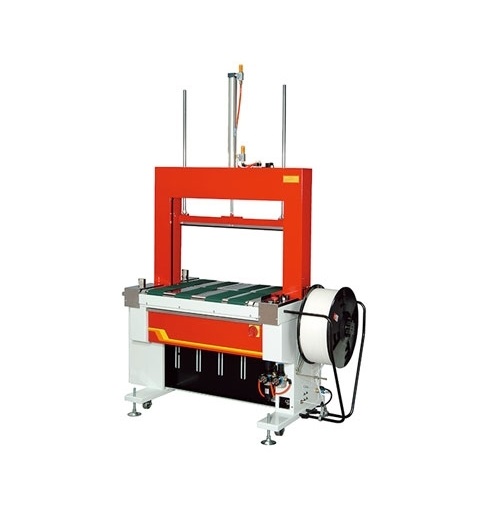

Tauris Transit TP-601BP is a fully automatic strapping machine with belt-driven table and compression press. It is a simple and the most reliable strapping machine for general purpose applications on the market.


Reliable and robust strapping head

With pneumatic press

Auto strap feeding

Electronic tension control

Auto strap ejector

Belt transmission

Hinged top plates

Conveyor speed: 30 meters/minute

Multiple strap function for single, double, continuous strapping, or transit mode

Up and down stream interlock with complete plug connection

Easy bundle flow direction change

Strap end ejector
