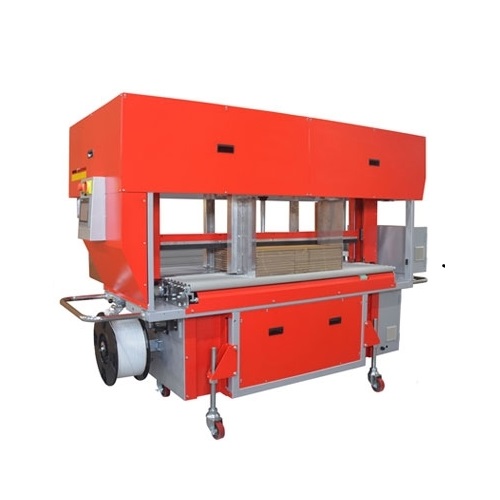

Transpak TP-702CQ3-S 带集成成方系统的高速瓦楞捆扎机 (5~9mm, 1~32kg)

Arch Size (W x H): 1650 x 450 mm

Strap Width: 5 mm, 6 mm, or 9 mm

Tension Range: 1 - 32 kg


Up to 26 bundles/minute (single strap)

Up to 13 bundles/minute (double straps)

Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH


Dual dispensers with auto coil change

Light tower with low strap sensor

Energy saving transit with auto sleep mode

Floor rails

Foot pedal switch

Bus interface for bundle size data transfer from upstream equipment



Watch as reference: TP-702CQ3-S Corrugated Strapper with Integrated Squaring System, Corrugated Bundler - TRANSPAK


TP-702CQ3-S is an all-electric high-speed corrugated strapper with integrated squaring and backstop functions. It is built on the quality proven Transpak TP-702C corrugated strapper and carries all the innovative features of the TP-702C. Motorized squaring and backstop devices provide precise bundle handling and positioning for forming perfect bundles. It can meet the speed requirement of the fastest Flexo Folder Gluer and Casemaker.


Compact & robust strapping head

3-side squaring bundle control

Automatic bundle size setup system

Motorized full-width press bar

Siemens PLC and HMI (touch panel)

Good for small bundle

Free access to strap guides (patents registered)

Hinged roller table
