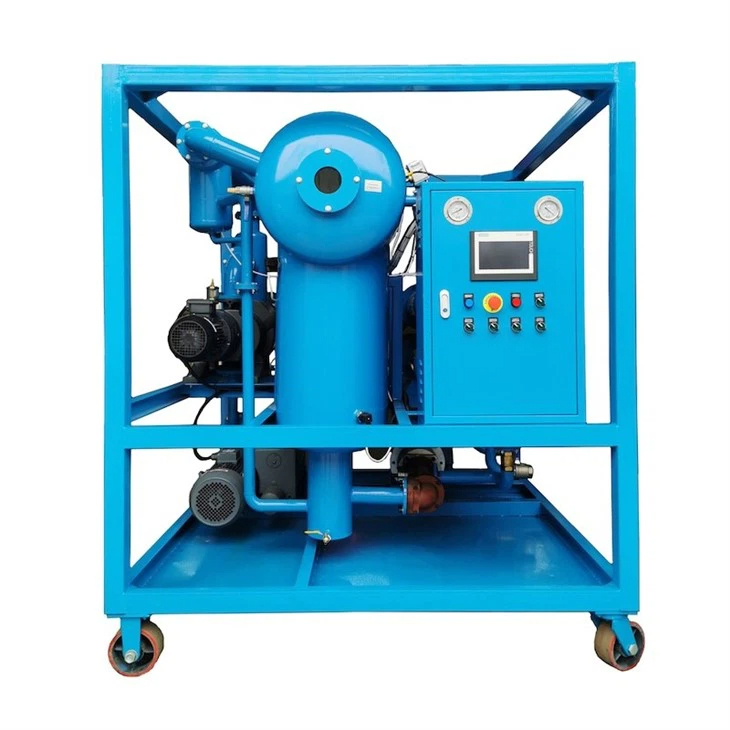

Wrindu ZYD-50 变压器油净化器 (Flow Rate (Liter/hour): 3000)

Flow Rate(Liter/hour): 3000

Recommended Max oil volume in one storage tank(Tons): 12

Relative Working Vacuum Degree(MPa): -0.08 ～ -0.099 MPa

Absolute Operating Vacuum Level(Pa): ≤ 8 Pa

Working Discharge Pressure(MPa): ≤ 0.5

Temperature Control(℃): 0 ～ 100

Operation oil Temperature in Treatment(℃): 30 ~ 80

Power Supply: AC 3~, 380 V, 50Hz, 4 Wire

Working without Trouble (H): 4000

Ambient Temperature: -25 ～ 55℃

Working noise dB(A): 65 ~ 85

Cooling Method: Air Cooling

Heating power(KW): 72

Total power(KW): 78

Inlet/outlet caliber(mm): φ32

Weight(Kg): 900

Size(LxWxH): 1710x1510x1860
