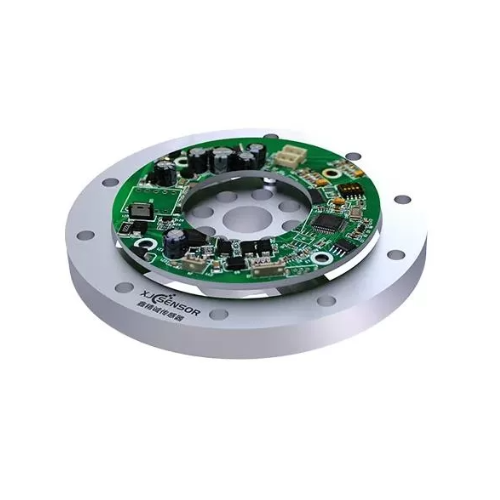

XJCSENSOR X-ST75 接头扭矩传感器 (100N.m)

Non-linearity: ≤0.2%F.S.

Repeatability: ≤0.2%F.S.

Zero balance: ±2%F.S.

Rated output:  1.0±10%mV/V

Communication: SPI

Sampling frequency: 2000Hz

Temp effect on output: 0.2%F.S./10°C

Temp effect on zero: 0.2%F.S./10°C

Insalution: ≥2000MΩ/50VDC

Operating voltage: 12-30VDC

Compensated temp range: -10~40°C

Operating temp range: -20~80°C

Limit load: 200%F.S.

Breaking load: 500%F.S.

Protection class: IP64

Torional rigidity: 80(KNm/rad)

Cable size: φ2*1m
